Four Chucks Zero Tailing Heavy Duty Laser Cutting Machine

FOUR CHUCKS

Zero Tailing Heavy Duty Tube Laser Cutting Machine

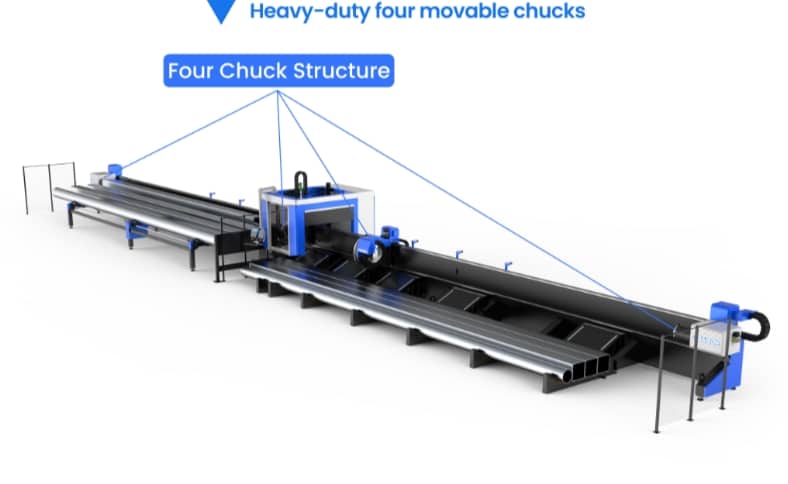

Four Movable Chucks

Thanks to the four-chuck design, you could flexibly carry out tube cutting in both positive and negative directions. Coupled with multiple clamping methods, zero tailing tube cutting becomes possible.

Intelligent Servo Follow-up Support

The system includes a pneumatic centering function that prevents swinging of the pipe during clamping, improving the linearity of the pipe. It can clamp both sides, providing higher clamping force, better dynamic performance, and faster response speed.

Industrial-grade bed frame

The bed frame is processed through 12 manufacturing steps to ensure precision and long-term use without deformation.

Intelligent Clamping System

Imported Precision Parts

The system utilizes precision parts such as Japanese Yaskawa servo motors, Japanese SMC proportional valves, and Motovario reducers, which ensure high control accuracy.

Intelligent Control System

The real-time centering compensation and rotation center correction enable the machine to achieve high precision cutting. The PLC process is freely editable, allowing for different cutting actions in different scenarios.

Cutting Samples

Laser cutting machines can cut through a wide range of materials and shapes, making them a versatile tool in many industries.

Technical Parameter

SPECIFICATIONS	TC622A	TC936B	TC1238D
Power Range	1500W--6000W	6000W-12000W	6000W-12000W
Pipe Processing Range	φ10-220mm □10-150mm Channel steel 5#-16# I-beam 10#-16# Angle iron 30-100	φ20-φ360mm □2020mm-360360mm Channel steel 5#-36# I-beam 10#-36# H steel 100-340	φ50-φ380mm □50-270mm Channel steel 5#-32# I-beam 10#-32# Angle iron 100*100mm H steel 10#-25#
Tail Length	0	0	0
Pipe Processing Length	6500mm	9000mm	12000mm
Wall Thickness	0.8-10mm	1-12mm	1-16mm
Max.Chuck Speed	120r/min	50r/min	50r/min
Max Single Tube Loading Weight	230KG	1000KG	1000KG
System	FSCUT5000A	FSCUT5000A	FSCUT5000A
Servo	Panasonic	VEICHI	YASKAWA
