G SERIES
All Rounder Tube Laser Cutting Machine
Wide Range of Pipe Cutting

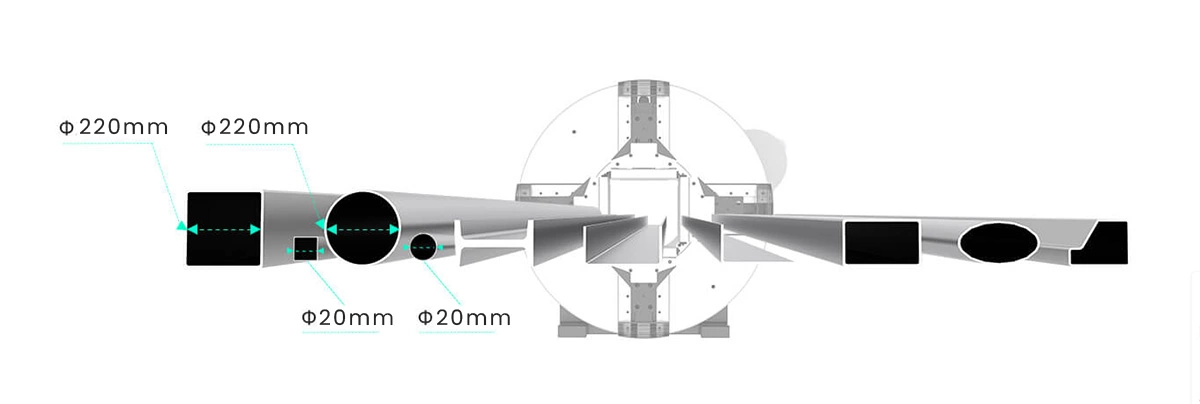

It has a wide range of applications and can easily handle tubes of different specifications; It can cut round tubes, oval tubes, square tubes, D-shaped tubes, channel beams, angle beams, H beams, T beams, etc.
Pneumatic Precision Chuck
The use of sixth-generation aerospace aluminum material for the lightweight precision-milled chuck, with a fully sealed design, results in a low inertia, high-speed, and high-efficiency machining.
industrial-grade bed frame
The bed frame is processed through 12 manufacturing steps to ensure precision and long-term use without deformation.
Intelligent Clamping System
The system includes a pneumatic centering function that prevents swinging of the pipe during clamping, improving the linearity of the pipe. It can clamp both sides, providing higher clamping force, better dynamic performance, and faster response speed.
Imported Precision Parts
The system utilizes precision parts such as Japanese Yaskawa servo motors, Japanese SMC proportional valves, and Motovario reducers, which ensure high control accuracy.
Intelligent Control System
The real-time centering compensation and rotation center correction enable the machine to achieve high precision cutting. The PLC process is freely editable, allowing for different cutting actions in different scenarios.
Cutting Samples
Laser cutting machines can cut through a wide range of materials and shapes, making them a versatile tool in many industries.
Technical Parameter
| SPECIFICATIONS | G22 | G22X |
|---|---|---|
|
Power Range |
1500W-6000W |
1500W-6000W |
|
Pipe Processing
Range |
φ10-220mm □10-150mm U-Steel5#-16# I-Beam10#-16# Angle Iron 30-100 |
φ10-220mm □10-150mm U-Steel5#-16# I-Beam10#-16# Angle Iron 30-100 |
|
Tail Length |
130mm |
130mm |
|
Pipe Processing
Length |
6500mm |
6500mm |
|
Angular
Acceleration |
100rad/S2 |
120rad/S2 |
|
Wall Thickness |
0.8-10mm |
0.8-10mm |
|
Max.Chuck Speed |
100r/min |
107r/min |
|
Max Single Tube
Loading Weight |
170KG |
205KG |
|
System |
FSCUT3000S / 5000C |
FSCUT5000B |
|
Servo |
YASKAWA |
YASKAWA |
|
Machine Weight |
≈3325KG |
≈4850KG |
|
Overall Dimensions
(L×W×H) |
9300×2700×2400mm |
9680×2700×2620mm |
