HE SERIES

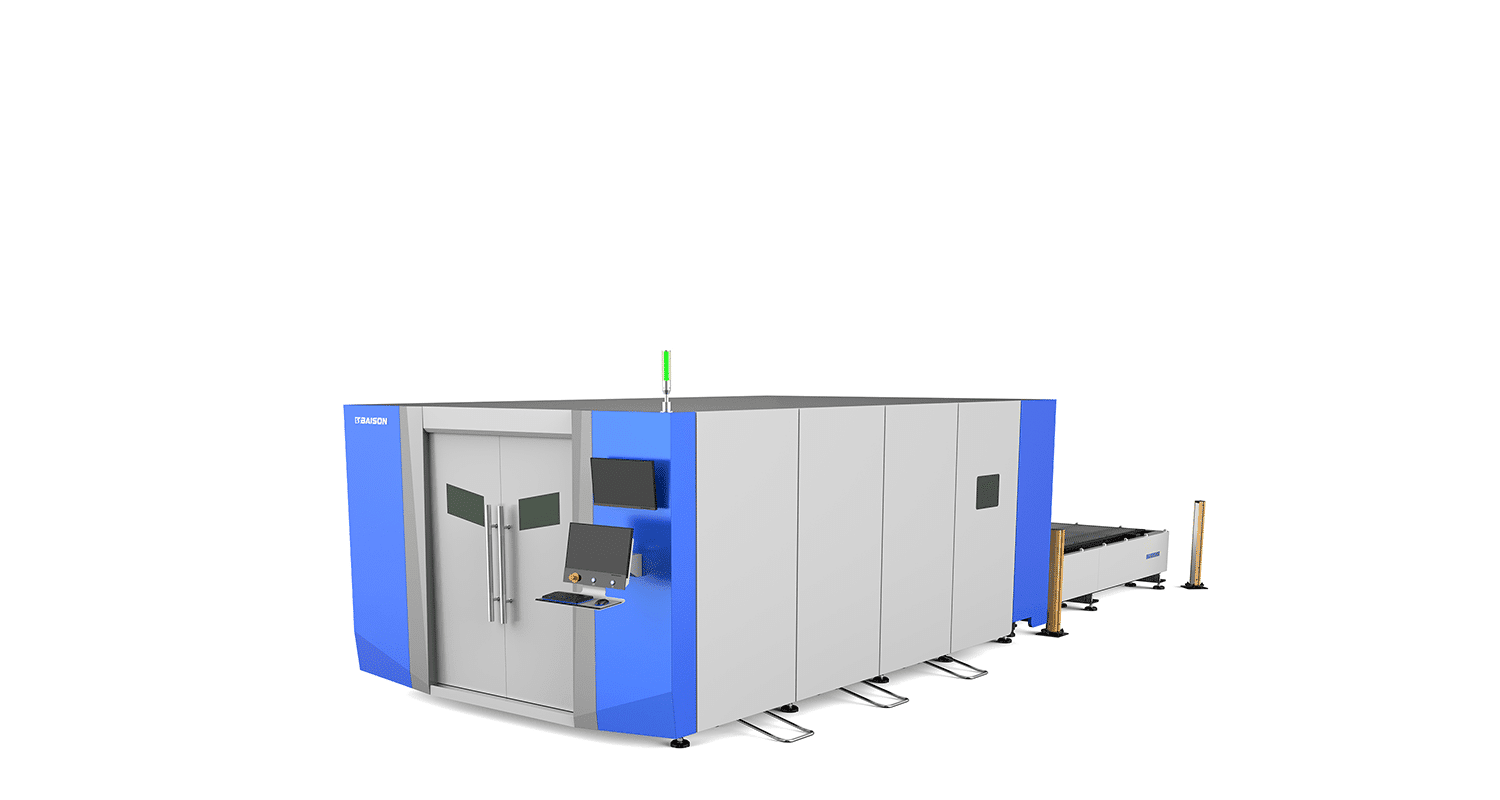

Dual Platforms Laser Cutting Machine
Climbing Exchange Platforms
It utilizes a climbing exchange method that allows for quick platform switching in just 10-15 seconds. When the platforms are exchanged, they are at the same height, reducing the Z-axis travel distance and improving cutting precision.
Super Heavy Steel Welding Machine Bed
The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.
The Fifth-generation Aviation Aluminum Alloy Beam
The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Auto Focusing Laser Head
The auto-focusing optical fiber cutting head has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within the specified range. The continuous focus can be set by the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.
Intelligent Control System
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
2 Units Can Be Loaded into a Single 40HQ
Due to its compact size and efficient design, it can be loaded into a standard 40HQ container with another unit of the same machine, effectively reducing the number of shipping containers needed to transport multiple machines. This feature not only saves on shipping costs but also reduces the environmental impact of shipping by minimizing the number of trips required.
Cutting Samples
Laser cutting machines can cut through a wide range of materials and thicknesses, making them a versatile tool in many industries.
Technical Parameter
| DATA | HE SERIES |
|---|---|
|
Power Range |
1500W~12000W |
|
Processing Size |
3000mm×1500mm |
|
Max Moving Speed |
120m/min |
|
Positioning Accuracy |
±0.03mm/m |
|
Repositioning Accuracy |
±0.03mm |
|
Max. Acc. Speed |
1.0G |
